VLANs for Homelabs Explained: Beginner Setup Guide

FTC Disclosure: This article contains affiliate links. If you purchase through these links, we may earn a commission at no additional cost to you.

If you have ever opened a switch menu, seen the words tagged, untagged, trunk, access, PVID, and isolation, and immediately felt like your network was trying to haze you, you are in the right place.

VLANs sound harder than they are. The problem is that most guides explain them like you are either studying for a certification exam or rebuilding a small data center in your garage. Most homelabbers do not need that. You need a setup that keeps your laptop away from your sketchy smart plug, keeps guests off your NAS, and does not break DNS, Wi-Fi, or Home Assistant every time you touch one setting.

That is what this guide is for.

Key Takeaways

VLANs let you split one physical network into separate logical networks.
For a homelab, the biggest win is security and organization, not enterprise cosplay.
A good starter design is usually 4 VLANs: management, trusted devices, servers, and IoT or guest.
You need both a managed switch and a VLAN-capable router or firewall.
VLANs alone do not enforce isolation well enough. Your firewall rules do the real work between networks.
The three beginner mistakes that break everything are wrong port types, missing DHCP scopes, and forgetting DNS or mDNS behavior across VLANs.
Start small, test each VLAN one at a time, and add complexity only after the basics work.

Why this matters before you touch a single setting

A flat network feels fine right up until it does not.

On a flat network, your phone, work laptop, NAS, Proxmox host, random camera, cheap smart plug, smart TV, test containers, and guest devices all live in one trust zone. That is convenient. It is also lazy. One bad device or one bad rule can expose far more than you intended.

VLANs help because they turn one messy room into several rooms with doors between them.

That is the analogy I want you to keep in your head:

A VLAN is a room
A switch is the hallway system
A trunk port is a hallway carrying traffic for several rooms
An access port is a door that only opens into one room
A firewall is the security guard deciding who gets through each door

Without VLANs, everybody is shouting in the same room.

With VLANs, the rooms are separate, and the security guard decides which conversations are allowed.

If you want the broader planning view first, read our Homelab Network Architecture Guide: VLANs and Firewalls. If you already know you want segmentation, keep going.

What a VLAN actually is in normal language

A VLAN, or Virtual Local Area Network, is a way to split one physical network into multiple isolated Layer 2 networks.

That sentence is technically correct and emotionally useless, so here is the practical version.

Normally, if devices plug into the same simple switch, they are on the same local network. They can discover each other, broadcast to each other, and generally behave like roommates who have no concept of privacy.

A VLAN lets that same switch pretend to be several different switches.

So instead of this:

Laptop
NAS
Camera
Guest phone
Home Assistant
Test server

all sharing one big local space, you get this:

VLAN 10 - trusted devices
VLAN 20 - servers
VLAN 30 - IoT
VLAN 40 - guests

Now those groups do not talk freely unless your router or firewall allows it.

VLANs, subnets, tagged traffic, and trunks - the four things beginners mix up

This is where most frustration starts, so let us untangle it.

VLAN vs subnet

A VLAN is the local broadcast domain on the switch side.

A subnet is the IP network you assign to that VLAN, like 192.168.20.0/24.

In practice, homelabs usually map one VLAN to one subnet.

Example:

VLAN 10 -> 192.168.10.0/24
VLAN 20 -> 192.168.20.0/24
VLAN 30 -> 192.168.30.0/24

That one-to-one mapping keeps your brain from filing a complaint against you later.

Tagged vs untagged traffic

A VLAN tag is a label on an Ethernet frame that says, "This belongs to VLAN 20."

Tagged traffic carries that label.
Untagged traffic does not.

Think of tagged traffic like envelopes with colored stickers. The switch reads the sticker and knows which VLAN the traffic belongs to.

Access port vs trunk port

An access port carries one VLAN for a normal end device like a desktop, printer, or camera.

A trunk port carries multiple VLANs between network devices, like:

router/firewall to switch
switch to switch
switch to access point
hypervisor to switch, if VMs need multiple VLANs

If you plug a normal PC into a trunk port without meaning to, you are probably about to have a confusing afternoon.

PVID or native VLAN

Many switches use a PVID or default VLAN ID for untagged traffic arriving on a port.

That matters because if a port is supposed to place an IoT device into VLAN 30, the port's untagged or default VLAN has to match that design.

This is one of the most common causes of "why did this camera get the wrong IP range?"

The hardware you actually need

You do not need enterprise gear. You do need the right features.

1. A managed switch

An unmanaged switch cannot do this job.

You need a switch that supports 802.1Q VLANs. That could be:

a budget smart switch
a UniFi switch
a MikroTik switch
an Omada switch
a used enterprise switch if you enjoy second-hand networking hardware and mystery fan noise

2. A router or firewall that supports VLANs

Your router or firewall handles:

the VLAN interfaces
DHCP scopes
default gateways
inter-VLAN routing
firewall rules

That could be:

pfSense
OPNsense
UniFi gateway
MikroTik
OpenWrt on supported hardware

If you are still picking a platform, our pfSense vs OPNsense vs OpenWrt comparison will help you choose the least annoying path.

3. A VLAN-aware access point, if Wi-Fi is involved

If you want separate SSIDs for trusted, IoT, or guest Wi-Fi, your AP has to support mapping SSIDs to VLANs.

Recommended gear if you are building this from scratch

You do not need to buy all of this at once, but these are sensible categories for a VLAN-ready homelab:

Managed 2.5GbE switch with VLAN support - this is the practical upgrade when you want proper segmentation plus room to grow. Recommended search link
Fanless Intel N100 mini PC with 4x 2.5GbE - a very good fit for pfSense or OPNsense when you want a dedicated router or firewall box. Recommended search link
Protectli-style firewall appliance - still a clean option if you prefer purpose-built network hardware over repurposed mini PCs. Recommended search link

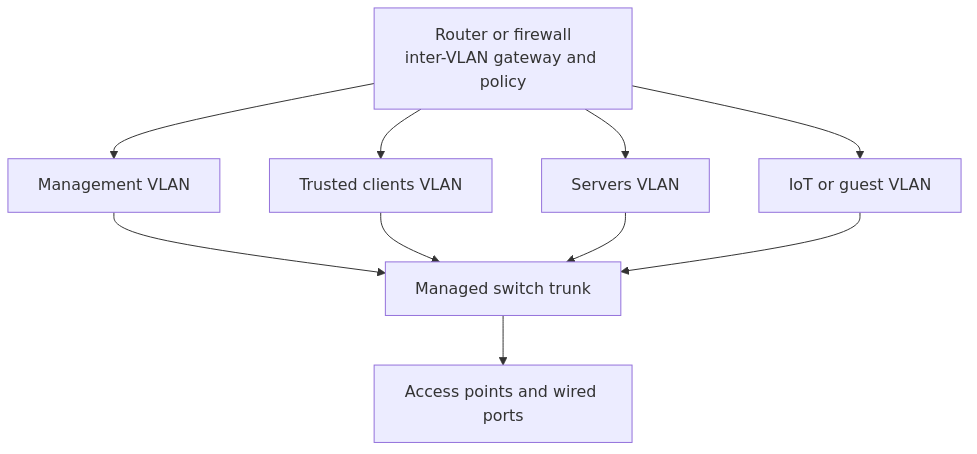

A sane starter VLAN design for most homelabs

You do not need ten VLANs on day one. That is how people end up writing sad notes to themselves about mDNS at midnight.

Start with four.

VLAN ID	Name	Subnet	What goes here
10	Management	192.168.10.0/24	switch UI, AP management, hypervisor management, firewall admin
20	Trusted	192.168.20.0/24	laptops, desktops, phones you trust
30	Servers	192.168.30.0/24	NAS, Proxmox services, containers, internal apps
40	IoT / Guest	192.168.40.0/24	smart plugs, TVs, cameras, guest Wi-Fi

Why this matters:

Management gets isolated because admin interfaces should not sit on the same network as every random client.
Trusted keeps your daily devices together.
Servers gives your infrastructure a predictable place to live.
IoT / Guest gives you the biggest immediate security improvement with the least effort.

If you later outgrow this, split VLAN 40 into separate IoT and Guest networks.

Step-by-step: the order that keeps you from breaking your own network

Do this in order. The order matters more than people admit.

Step 1: plan VLAN IDs, subnets, and names

Write them down before you click anything.

A bad VLAN design is like labeling moving boxes after you already threw everything into the truck.

Use a simple table like the one above. Keep IDs memorable. Keep subnets aligned with VLAN IDs if possible.

That means:

VLAN 10 -> 192.168.10.0/24
VLAN 20 -> 192.168.20.0/24
VLAN 30 -> 192.168.30.0/24
VLAN 40 -> 192.168.40.0/24

That pattern is not required, but it saves you from avoidable confusion.

Step 2: create VLAN interfaces on the router or firewall

This is the actual gateway side.

On pfSense or OPNsense, you will typically:

pick the parent physical interface, like igb0 or em0
create VLAN 10, 20, 30, and 40 on that interface
assign each VLAN to a logical interface
give each interface a gateway IP such as:
192.168.10.1/24
192.168.20.1/24
192.168.30.1/24
192.168.40.1/24

Official references if you want vendor documentation while you build:

Step 3: create DHCP scopes for each VLAN

Why this matters before the next step:

If DHCP is missing, devices may connect physically but never get useful addresses. That often makes people blame the switch when the real problem is the gateway.

For each VLAN, define a DHCP range such as:

VLAN 10: 192.168.10.100-199
VLAN 20: 192.168.20.100-199
VLAN 30: 192.168.30.100-199
VLAN 40: 192.168.40.100-199

If you need a refresher on DHCP behavior, read DHCP Explained for Homelabs. It is much easier to troubleshoot VLANs when you can immediately recognize whether a device landed in the wrong scope.

Step 4: configure the switch uplink as a trunk

The cable between your firewall and switch usually needs to carry multiple VLANs.

That means the uplink should be a trunk port.

A vendor-neutral idea of that config looks like this:

port 1 = trunk
allowed VLANs: 10,20,30,40
native/untagged VLAN: management or none, depending on platform design

If you are working on a Cisco-like CLI, it often looks like this:

interface GigabitEthernet0/1
 switchport mode trunk
 switchport trunk allowed vlan 10,20,30,40

Do not overcomplicate this. The goal is simple: the router-to-switch link must carry every VLAN you intend to use.

Step 5: configure device-facing ports as access ports

Now give normal endpoint ports one VLAN each.

Examples:

NAS port -> access VLAN 30
desktop port -> access VLAN 20
camera port -> access VLAN 40

Cisco-like example:

interface GigabitEthernet0/2
 switchport mode access
 switchport access vlan 30

If a device should live in exactly one VLAN and is not itself VLAN-aware, use an access port.

Step 6: configure AP uplinks and SSIDs carefully

If you use one Wi-Fi AP for several SSIDs, the AP uplink usually needs to be a trunk too.

Example:

Main SSID -> VLAN 20
Lab SSID -> VLAN 30
IoT SSID -> VLAN 40
Guest SSID -> VLAN 40 or a dedicated VLAN 50 later

This is another place people accidentally flatten their network without noticing.

Step 7: create firewall rules between VLANs

This is the part that actually gives your design teeth.

VLANs separate local broadcast domains. Firewall rules decide what crosses between them.

A sensible starter policy is:

allow each VLAN outbound internet access
block IoT from Trusted and Management
block Guest from internal networks
allow Trusted to reach Servers as needed
allow only specific flows from Trusted to Management

For a deeper walkthrough, read Homelab Firewall Rules: How to Isolate VLANs Without Breaking DNS, Backups, or Your Sanity.

Real commands to test whether your VLAN setup is actually working

This is the part many guides skip, and it is why so many people end up guessing.

On a Linux box, create a temporary VLAN interface for testing

If you have a Linux host connected to a trunk and want to verify tagged traffic manually:

sudo ip link add link eno1 name eno1.30 type vlan id 30
sudo ip addr add 192.168.30.10/24 dev eno1.30
sudo ip link set eno1.30 up
ip addr show eno1.30
ip route

Why this matters:

This gives you a direct way to test whether VLAN 30 is really reachable from that trunk.

Check VLAN membership on a Linux bridge or host

bridge vlan show

That command is useful on Linux-based hosts, hypervisors, or lab routers because it shows which VLANs are present on which interfaces.

Test DHCP and gateway reachability

ping -c 3 192.168.30.1

If the device is on VLAN 30, it should be able to reach the VLAN 30 gateway.

Check how traffic is flowing

traceroute 192.168.20.1

If inter-VLAN routing is allowed, this helps show whether the firewall is actually routing the path you expect.

Confirm the tag is really there

sudo tcpdump -eni eno1 vlan 30

If you see VLAN-tagged frames, the trunk is doing its job. If you do not, your switch port or upstream interface is probably misconfigured.

The mistakes that catch beginners first

1. Creating VLANs on the switch but not on the firewall

This creates isolated islands with no gateway.

Symptoms:

clients get no IP
no internet access
weird partial connectivity

2. Making the wrong port a trunk

Normal endpoints should usually be on access ports, not trunks.

Symptoms:

device gets no IP
device lands on wrong network
AP broadcasts the right SSID but clients pull the wrong subnet

3. Forgetting DNS and service discovery

This one hurts because it looks random.

Your DNS resolver, mDNS reflector, Chromecast discovery, AirPlay, and Home Assistant discovery can all behave differently across VLANs.

That does not mean VLANs are broken. It means discovery traffic is no longer floating freely across the whole house, which is the point.

If DNS has been one of your recurring pain points, our older Homelab DNS guide is worth revisiting after segmentation.

4. Over-segmenting too early

You do not need a dedicated VLAN for every emotional state.

Beginners often create:

one VLAN for cameras
one for TVs
one for game consoles
one for printers
one for voice assistants
one for random future ideas

Then they spend days writing exceptions for traffic they barely understand.

Start with four. Add more only when a clear need appears.

5. Skipping logging

Log deny rules when you first roll this out.

That gives you a map of what devices are trying to do. A blocked log is not just noise. It is a clue about dependencies you forgot to account for.

A practical starter policy that works for many home labs

If you want the short version, do this:

Put admin interfaces on VLAN 10.
Put your normal client devices on VLAN 20.
Put servers and self-hosted apps on VLAN 30.
Put IoT and guests on VLAN 40.
Allow VLAN 20 to reach VLAN 30 where needed.
Block VLAN 40 from reaching VLAN 10 and VLAN 20.
Allow VLAN 40 internet access, unless you intentionally run a no-internet camera or device segment.
Keep DNS resolvers predictable and documented.

That gets you most of the benefit without turning your homelab into a puzzle box.

Common mistakes

Here are the mistakes I see most often when someone says, "I set up VLANs and now nothing works":

assigning the router uplink as an access port instead of a trunk
forgetting to create a DHCP scope for a new VLAN
putting the switch management interface on the wrong VLAN and locking yourself out
assuming VLANs alone block all inter-network traffic without verifying firewall rules
tagging Wi-Fi SSIDs but forgetting to trunk the AP uplink
putting Home Assistant, printers, or DNS in a segmented network without planning how discovery and access should work
using VLAN 1 for everything important because it is the default
creating too many VLANs before you have a clear rule strategy

If you avoid those, you are already ahead of a surprising number of "advanced" setups.

FAQ

Do I need a managed switch for VLANs?

Yes. An unmanaged switch cannot properly handle 802.1Q VLAN tagging, which is what most real homelab VLAN setups depend on.

Can devices on different VLANs talk to each other?

Not directly at Layer 2. They need routing through a router or firewall, and that traffic can then be allowed or blocked by firewall rules.

Should I put IoT devices on their own VLAN?

Usually yes. That is one of the highest-value VLAN moves you can make because IoT devices are often the least trustworthy things on the network.

What is the difference between a trunk port and an access port?

A trunk carries multiple VLANs between network devices. An access port carries one VLAN for a normal endpoint like a laptop, NAS, or camera.

Is VLAN 1 okay for a homelab?

It is better not to rely on VLAN 1 for important segmentation. Many devices treat it as the default VLAN, and avoiding it for key networks reduces confusion.

What to learn next

Once your VLANs work, the next topics that matter most are:

Firewall policy design - read Homelab Firewall Rules
Address planning and leases - read DHCP Explained for Homelabs
Router platform selection - read pfSense vs OPNsense vs OpenWrt
Bigger-picture topology - revisit Homelab Network Architecture Guide

If you remember nothing else from this guide, remember this: VLANs are not about making your network look impressive. They are about making your network easier to trust, easier to reason about, and easier to recover when something weird happens.

That is why they matter.
