Docker IPvlan for Homelabs: The Setup I Use When Macvlan Creates More Drama Than It Solves

FTC disclosure: This article contains affiliate links. If you buy through them, we may earn a commission at no extra cost to you.

Key Takeaways

• Use Docker bridge networking by default. It is still the cleanest option for most containers.
• Use ipvlan when a container needs its own LAN IP but you do not want multiple MAC addresses hanging off one host interface. That is the real reason it exists.
• Start with ipvlan L2 unless you have a specific routing reason to use L3. L3 is useful, but it is not the first thing I would hand to most homelabbers on a Saturday morning.
• Ipvlan is not a magic fix for every macvlan annoyance. If your main problem is host-to-container communication, bridge mode or a different network design may still be the better answer.
• Plan your IP range before you touch Docker. Overlapping DHCP, container static IPs, and VLAN subnets is how a quick networking change becomes an afternoon of muttering at tcpdump.

I have a simple rule for Docker networking in a homelab: if a container does not absolutely need its own LAN IP, I do not give it one.

That rule has saved me a lot of unnecessary nonsense.

But sometimes you really do need a container to look like a real device on the network. Pi-hole is the obvious example. Home Assistant, Scrypted, a few monitoring tools, and certain discovery-heavy services also get weird fast when you try to hide them behind basic bridge networking and port mappings.

That is where people usually find macvlan first.

And to be fair, macvlan works. It also has a talent for turning a perfectly normal Docker host into a small networking science project, especially when you mix in Proxmox, managed switches, hypervisor vNICs, or anything that gets grumpy about extra MAC addresses on one port.

That is the point where I start looking at ipvlan.

I am not going to pretend ipvlan is some magical hidden feature that fixes every networking problem. It does not. What it does do - and this is the part that matters - is let containers have their own IP addresses while sharing the host MAC address. In the right homelab, that is the difference between a setup that behaves normally and one that keeps finding new ways to annoy you.

If you want the official reference while reading, Docker's own ipvlan driver docs are still the canonical source. I also recommend keeping the docker network create reference nearby if you want to sanity-check flags.

What Docker ipvlan actually is

Docker ipvlan is a network driver that lets containers connect more directly to a physical interface or VLAN sub-interface on your host.

In plain English, it gives a container its own IP on the network without making the network see that container as a separate MAC-addressed device.

That last part is the whole game.

With macvlan, every container gets its own MAC address. With ipvlan, containers share the host MAC and get unique IP addresses. If your switch, virtual switch, cloud environment, or hypervisor path does not enjoy seeing a pile of extra MACs behind one NIC, ipvlan is often the cleaner option.

Docker supports three ipvlan modes, but most homelab readers only need to care about two:

• L2 mode - containers live on the same Layer 2 network as the parent interface
• L3 mode - containers live on a routed subnet and the host routes traffic for them

If you are asking whether to start with L2 or L3, start with L2.

L3 is useful when you intentionally want routed isolation and you understand the downstream route changes that come with it. It is not my first recommendation for "I just want Pi-hole to get a real IP and stop acting like a container trapped behind NAT."

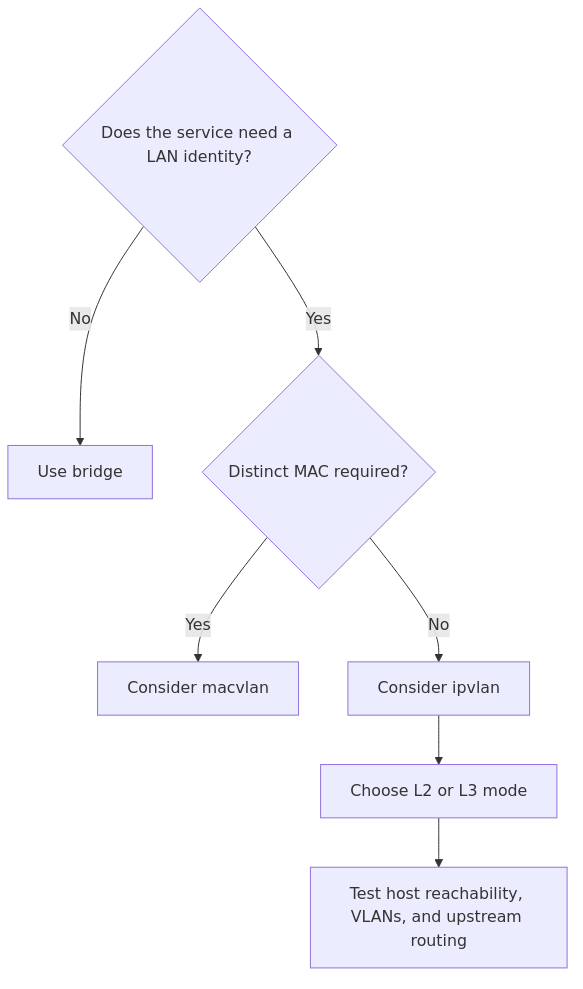

When I pick bridge, macvlan, or ipvlan

Most articles explain these drivers separately. That is technically fine and practically annoying.

The question people actually ask is which one they should use.

Here is the short version I wish more guides would give you up front:

Need	What I usually pick	Why
Regular web app, dashboard, API, reverse proxy backend	Bridge	Easiest to manage, no LAN IP waste, works well with published ports
Service needs broadcast / discovery or a real LAN IP, and your network tolerates extra MACs	Macvlan	Direct LAN presence, straightforward mental model
Service needs a real LAN IP, but you want to avoid extra MAC addresses on the parent interface	Ipvlan	Cleaner for some switches, hypervisors, and more constrained network paths
Host must easily talk to the container and there is no strong reason for a dedicated LAN IP	Bridge	Fewer weird edge cases, less self-inflicted pain
You want routed container subnets and understand static routes	Ipvlan L3	Powerful, but not the beginner default

If you have not already read my broader Docker networking deep dive, that article is the right first stop before you start throwing advanced drivers at simple problems.

Advanced Docker networking is useful. It is not automatically wise.

Why I use ipvlan in homelabs

I use ipvlan when I want a service to behave like a first-class LAN citizen, but I do not want to deal with the extra-MAC side effects that come with macvlan.

That is the practical answer.

The more detailed version is this:

• some switch or virtual switch paths do not love seeing multiple MAC addresses behind one port
• some Proxmox and nested-virtualization setups behave more predictably when the parent interface only presents one MAC upstream
• some homelab networks are already complicated enough without adding another variable that only exists because Docker wanted to get fancy

This does not mean ipvlan is always better than macvlan.

It means ipvlan is better when the constraint is upstream MAC handling, not when the constraint is simply "I want a real IP." If your network is perfectly happy with macvlan, then macvlan may still be the simpler story.

I would also be careful with one common myth: ipvlan is not a universal fix for host-to-container communication.

A lot of people hit the classic macvlan limitation, where the host cannot cleanly talk to its own macvlan containers, and then assume ipvlan automatically solves that. In practice, you still need to test your traffic path carefully. Docker's own docs explicitly note host reachability caveats in ipvlan examples too.

So my recommendation is blunt:

• if you mainly need easy host-to-container communication, prefer bridge networking unless the app absolutely requires a LAN IP
• if you mainly need a LAN IP and you want to avoid multiple MAC addresses, ipvlan is a strong candidate

That distinction saves a lot of time.

The setup I actually use for ipvlan L2

This is the pattern I use most often in a homelab.

I create an ipvlan L2 network on an existing LAN or VLAN, reserve a small IP range outside DHCP, and then attach only the handful of containers that truly need it.

Before you do anything, figure out your parent interface:

ip -brief link
ip addr show eno1

Substitute eno1 with whatever your real interface is. In a Proxmox VM, that may be ens18 or something equally cheerful.

Now create the network:

docker network create -d ipvlan \
  --subnet=192.168.30.0/24 \
  --gateway=192.168.30.1 \
  --ip-range=192.168.30.192/27 \
  -o ipvlan_mode=l2 \
  -o parent=eno1.30 \
  ipvlan_services

What each piece does:

• --subnet defines the network
• --gateway points to your router or Layer 3 gateway for that VLAN
• --ip-range gives Docker a smaller pool to hand out, which helps you avoid colliding with DHCP or static infrastructure IPs
• -o parent=eno1.30 tells Docker to attach to a tagged VLAN sub-interface
• -o ipvlan_mode=l2 keeps the containers on the same Layer 2 segment as the parent interface

If you are not using a tagged VLAN and the host interface is already on the target LAN, your parent can just be eno1.

You can inspect the result with:

docker network inspect ipvlan_services

Then test with a disposable container:

docker run --rm -it \
  --network ipvlan_services \
  --ip 192.168.30.210 \
  alpine:3.22 sh

Inside the container:

ip addr
ip route
ping -c 3 192.168.30.1
ping -c 3 1.1.1.1

If that all works, you have a usable ipvlan network.

That is the point where I stop and verify from another machine on the LAN too. I do not trust networking changes until I test them from at least two directions. That habit exists because I enjoy learning from my mistakes once, not repeatedly.

Docker Compose example

If you use Compose, I strongly prefer creating the ipvlan network first and then treating it as an external network.

That keeps the network definition stable and avoids Compose trying to be clever on your behalf.

services:
  pihole:
    image: pihole/pihole:latest
    container_name: pihole
    restart: unless-stopped
    networks:
      ipvlan_services:
        ipv4_address: 192.168.30.210
    environment:
      TZ: UTC
      FTLCONF_webserver_api_password: change-me
    volumes:
      - ./etc-pihole:/etc/pihole
      - ./etc-dnsmasq.d:/etc/dnsmasq.d

networks:
  ipvlan_services:
    external: true

That pattern works well when you want one or two services on the LAN and everything else on normal bridge networks.

Do not stick every container onto ipvlan just because you finally got it working.

That is how people end up giving Grafana, Redis, random sidecars, and a weekend experiment their own LAN addresses for no good reason. Your router does not need that kind of drama.

If you want the Compose field details, Docker's Compose networks reference is the official source.

L2 vs L3 - the decision most guides overcomplicate

Here is the simplest useful rule I can give you:

• pick L2 when the container should live on the same network as the parent interface
• pick L3 when you intentionally want the containers on a different routed subnet and you are prepared to handle routing

That is it.

L2 is what most homelabbers mean when they say they want a container to have its own LAN IP.

L3 is what you use when you want more deliberate separation and are comfortable adding static routes or routing policy so the rest of your network can find that subnet.

L3 can be elegant. It can also be a fantastic way to create an invisible problem that only shows up when one device on the network cannot reach your service and every other device can.

If you are still getting comfortable with VLANs, bridges, and firewall boundaries, I would spend more time with articles like my homelab network architecture guide and Proxmox networking explained before you decide ipvlan L3 sounds relaxing.

It is many things. Relaxing is not at the top of the list.

Proxmox and VLAN trunk considerations

If your Docker host is itself a VM inside Proxmox, pay attention to the parent interface and upstream VLAN path.

This is where a lot of otherwise-correct Docker networking tutorials become suspiciously unhelpful.

Your Docker host may see ens18, but the real network behavior still depends on how the Proxmox bridge, VLAN awareness, and VM NIC are configured upstream. If the VLAN is not actually getting to that VM, Docker ipvlan is not going to invent it for you out of kindness.

A practical checklist:

1. verify the Proxmox bridge is VLAN-aware if you are trunking tagged networks
2. verify the VM NIC is allowed to receive that VLAN
3. create the Linux VLAN sub-interface inside the guest only if that matches your design
4. confirm the parent interface you hand to Docker is the one that really carries the target network

If you need a tagged sub-interface inside Linux, it looks like this:

ip link add link eno1 name eno1.30 type vlan id 30
ip addr add 192.168.30.10/24 dev eno1.30
ip link set eno1.30 up

You would normally persist that with systemd-networkd, NetworkManager, or netplan depending on the distro.

And yes, this is exactly the kind of setup where it helps to understand the broader Docker daemon proxy configuration and host networking path too. When Docker cannot reach the network you think it should, the issue is often one layer above Docker.

The mistake I made

The mistake I made was assuming the "container needs its own IP" question automatically meant macvlan.

That is the default advice in a lot of homelab threads, and sometimes it is correct.

But on one of my lab hosts, I was stacking enough network weirdness already - Proxmox VM, tagged VLAN, managed switch, a couple of containers that needed direct LAN presence - that macvlan became one more variable I did not need. Ipvlan simplified the upstream story because the network still only saw one MAC.

The second mistake I made was almost worse: I started testing before I cleaned up IP planning.

Do yourself a favor and decide three things first:

• your VLAN or subnet
• your DHCP range
• the static or Docker-managed IP slice reserved for ipvlan containers

When those are fuzzy, every failure looks like a Docker problem even when it is really an address-management problem.

Common mistakes with Docker ipvlan

1. Using ipvlan for containers that should have stayed on bridge

Just because ipvlan exists does not mean your dashboard, reverse proxy backend, and random admin tools need it.

If the app works perfectly with -p 8080:8080, keep your life simple.

2. Overlapping the Docker IP range with DHCP

This is one of the fastest ways to create flaky behavior that looks supernatural.

Reserve a clean block outside your DHCP scope. Be boring on purpose.

3. Picking the wrong parent interface

This is extremely common in VMs.

You think the parent should be eth0, but the actual tagged traffic is on a sub-interface or a different NIC entirely. Docker will happily accept a bad assumption and then let you debug it emotionally.

4. Treating ipvlan L3 like a free upgrade

L3 is not "L2 but better."

It is a routed design. If you do not want to think about routes, do not pick it.

5. Forgetting that host reachability still needs testing

Do not assume ipvlan solves every host-to-container communication quirk just because it is not macvlan.

Test the actual traffic you care about. DNS from the router, web UI from the host, metrics scraping from another subnet - whatever matters in your environment.

Recommended gear for this kind of setup

If you are building around Docker services that need clean VLAN-aware networking, these are the product categories I would recommend naturally for the job:

• Fanless Intel N100 mini PC with dual 2.5GbE - a sensible low-power Docker or Proxmox host for network-heavy lab services
• 2.5GbE smart managed switch with VLAN support - because advanced container networking gets a lot easier when the switch is not fighting you
• USB 2.5GbE adapter for Linux - handy for testing, temporary uplinks, or separating management and lab traffic

I am not saying you need to buy hardware to understand ipvlan.

I am saying good networking problems are much nicer than bad networking problems, and a VLAN-aware switch tends to reduce the number of mysteries you have to solve the hard way.

FAQ

What is the main difference between Docker ipvlan and macvlan?

Macvlan gives each container its own MAC address and IP address. Ipvlan gives containers unique IP addresses while sharing the host MAC address.

That makes ipvlan a better fit when upstream network paths, switches, or hypervisors do not like multiple MAC addresses behind one interface.

Should I use ipvlan L2 or L3 in a homelab?

Use L2 first.

Use L3 only when you specifically want a routed container subnet and you are prepared to handle the route changes that come with it.

Does Docker ipvlan give a container a real LAN IP?

Yes.

That is one of the main reasons to use it. The container can live on your LAN or VLAN with its own IP address instead of hiding behind Docker bridge NAT.

Does ipvlan fix the host-to-container communication problem from macvlan?

Not automatically.

It may behave better in some environments, but you still need to test the exact communication path you care about. If smooth host access is your highest priority, plain bridge networking is often the safer design.

When should I avoid ipvlan entirely?

Avoid it when the app does not need a dedicated LAN IP.

Also avoid it when you are still shaky on VLANs, parent interfaces, DHCP boundaries, and routing. Advanced Docker networking rewards precision and punishes optimism.

What to learn next

If this article solved the "should I use ipvlan" question, the next step is understanding the bigger network around it.

Start with Docker Macvlan for Homelabs if you want the closest comparison. Then read Docker Networking Deep Dive if you want the broader model.

And if you are running Docker inside Proxmox, go straight to Proxmox Networking Explained. That article will save you from blaming Docker for problems that really belong to your virtual switch, bridge, or VLAN design.

My recommendation, in one sentence: use bridge until you have a real reason not to, use macvlan when the network is simple, and use ipvlan when you need a real LAN IP without inviting extra-MAC nonsense into the room.
